Low Cost Ultra Linear Amplifier

Posted On 30 Nov 2021

By : ld体育下载

Comment: 0

Tag: Amplifier Solutions Corporation,ASC,ASC523,ultra-linear amplifier

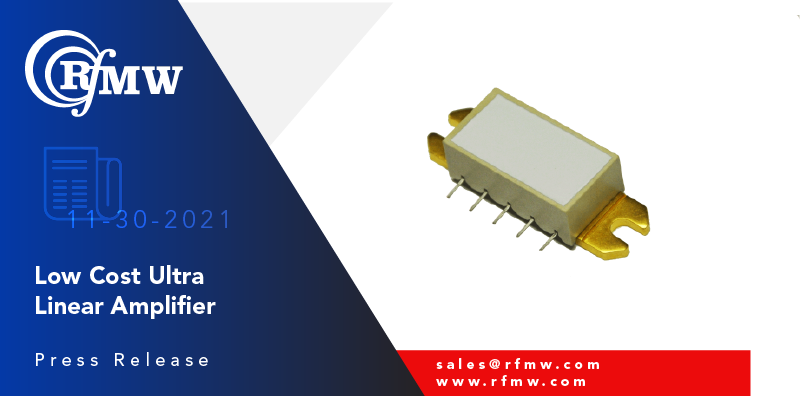

The ASC523 from Amplifier Solutions Corporation is a 2 to 250 MHz ultra-linear amplifier

RFMW announces design and sales support for an ultra-linear amplifier from Amplifier Solutions Corporation (ASC). TheASC523has an operating band of 2 to 250 MHz with typical specifications of +35 dBm P1dB, 22 dB gain, and 2.8 dB Noise Figure. Operating at 24V in a SMD 5-pin flange mount package, it has excellent linearity with very low noise figure and is unconditionally stable with optimal reliability targeting HF, VHF, or Radar communication applications that require high linearity. No external components are required.
